They are specifically designed for pre-cleaning of plastic surfaces for bonding or painting. They can clean the internal and external release agents of flexible plastic products to GM 9984801 (for plastic bumper).

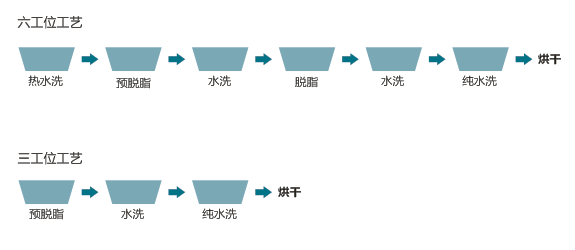

Hot water wash-Pre-degreasing - Water wash - Degreasing - Water wash– Pure water wash – Drying Three-station process
Pre-degreasing - Water wash - Pure water wash – Drying

Iron phosphate is a kind of light alkaline earth metal phosphating solution, which treats blue-yellow phosphating film, degreasing phosphating two-in-one process. It is suitable for cold-rolled sheet, aluminum and galvanized sheet.

Degreasing phosphating 1 - Degreasing phosphating 2 – Water wash – Water wash

Zinc Phosphating is a modified ternary low zinc phosphating process agent that can be used for phosphating treatment of steel plates and galvanized sheets. The dense phosphating film crystals are excellent in paint, powder coating and electrophoresis processes to meet the processing requirements of automobile body and various components.

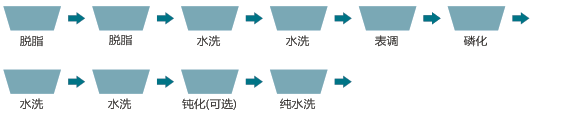

Degreasing - Degreasing - Water wash – Water wash –Surface conditioning - Phosphate– Water wash - Water wash –Passivation (Optional) – Pure water wash

Phosphorus-free conversion coating Silane products, multi-purpose coating pretreatment agent Suitable for cold-rolled plate, galvanized sheet, aluminum, magnesium and zinc alloy. Can replace the zinc phosphating and chromium process, does not contain harmful metals. Almost no residue. Used in bath solutionat room temperature.

Degreasing - Degreasing - Water wash –Pure water wash – Silane - Pure water wash –

Chrome-free conversion coating , commonly used inpre-treatment of aluminum alloy powder, paint. With long bath solution life, easy maintenance, low consumption, it has passed AAMA test.Where the following process is powder spray, there’s no need for water wash.

Degreasing – Pickled - Water wash –Water wash –Chromium-free conversion-

The manganese-based phosphating is used for iron to reduce sliding friction and improve the wear resistance of the active parts. The manganese phosphate film is 7-30 g / m², conforming to DIN 50942.

Degreasing –Water wash – Water wash - Surface conditioning - manganese phosphating – Water wash – Water wash -

The thickness of the phosphating film can be precisely adjusted by the strength of the current and the processing time.

Mechanical rust remover – Electrolification – Water wash

Heavy anti-corrosion coating is a moisture-curable one-component rust-proof coating with metal properties. It can penetrate deeply into the corroded pores, when combined with the moisture in the air curing, it will expand in the pores, and corrosion closely, and seal the pores, unify with the substrate, forming a steel coating.

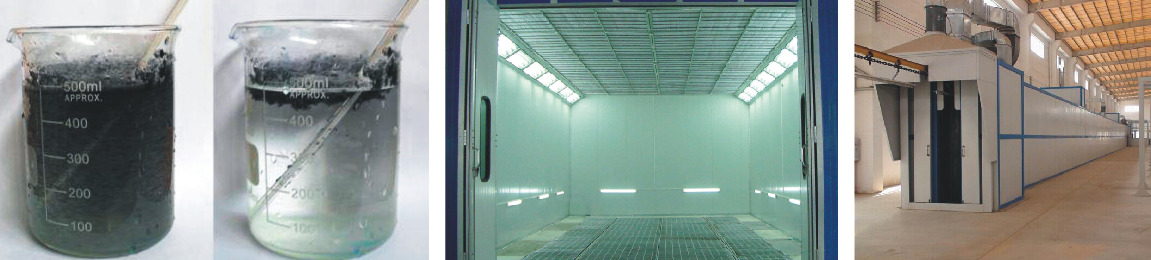

Added to the circulating water of spray room to capture the oily or water-based paint in the water, to avoid blockage of circulation and pipeline, to extend the use of circulating water and the equipment life.

Advantages: liquid products, easy adding, no dust pollution; green, no corrosion, human body friendly; low demand for equipment, simple control, strong damage ability to paint; wide application, good slag suspension, easy to remove; Low use, can reduce waste water discharge, can reduce the comprehensive use of cost.
